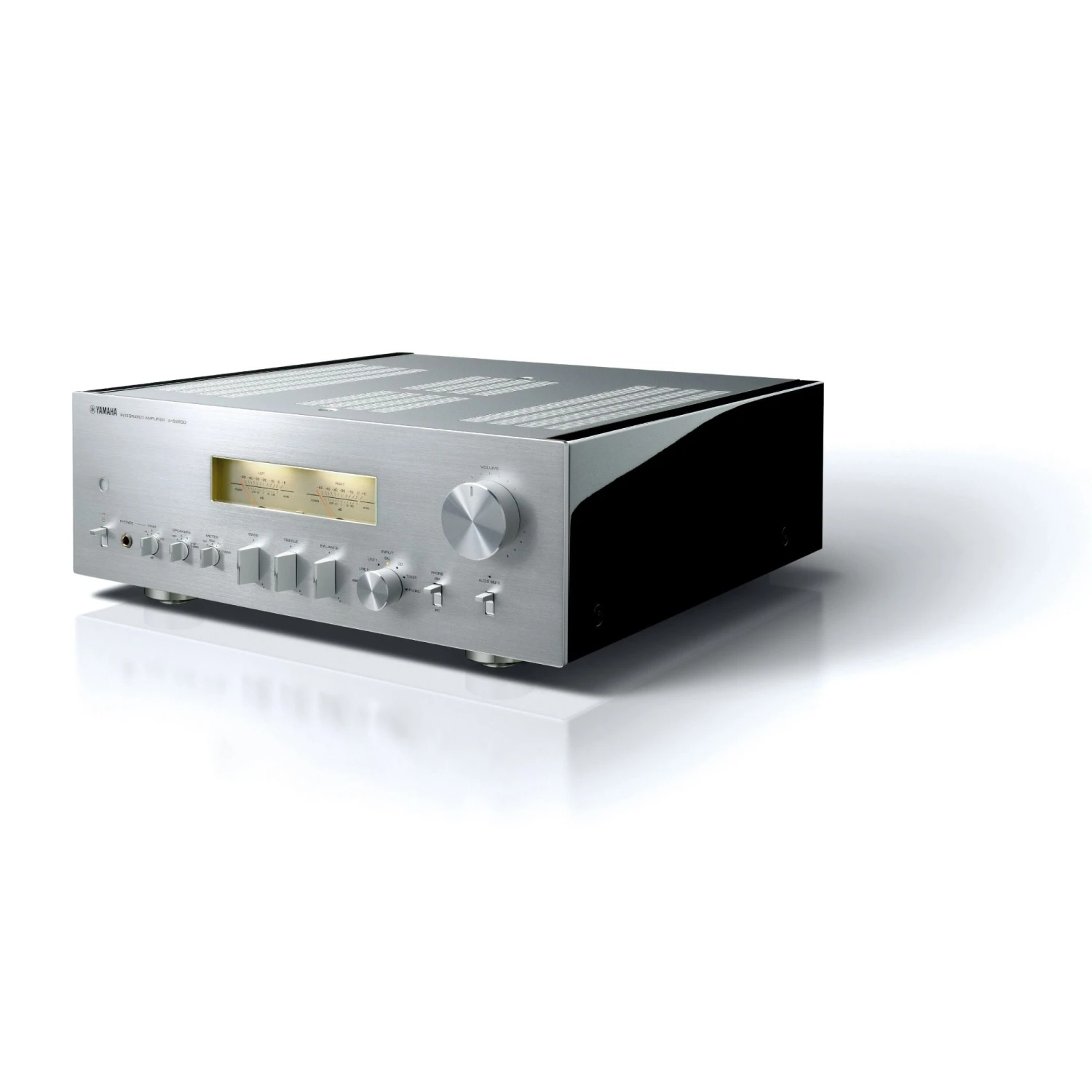

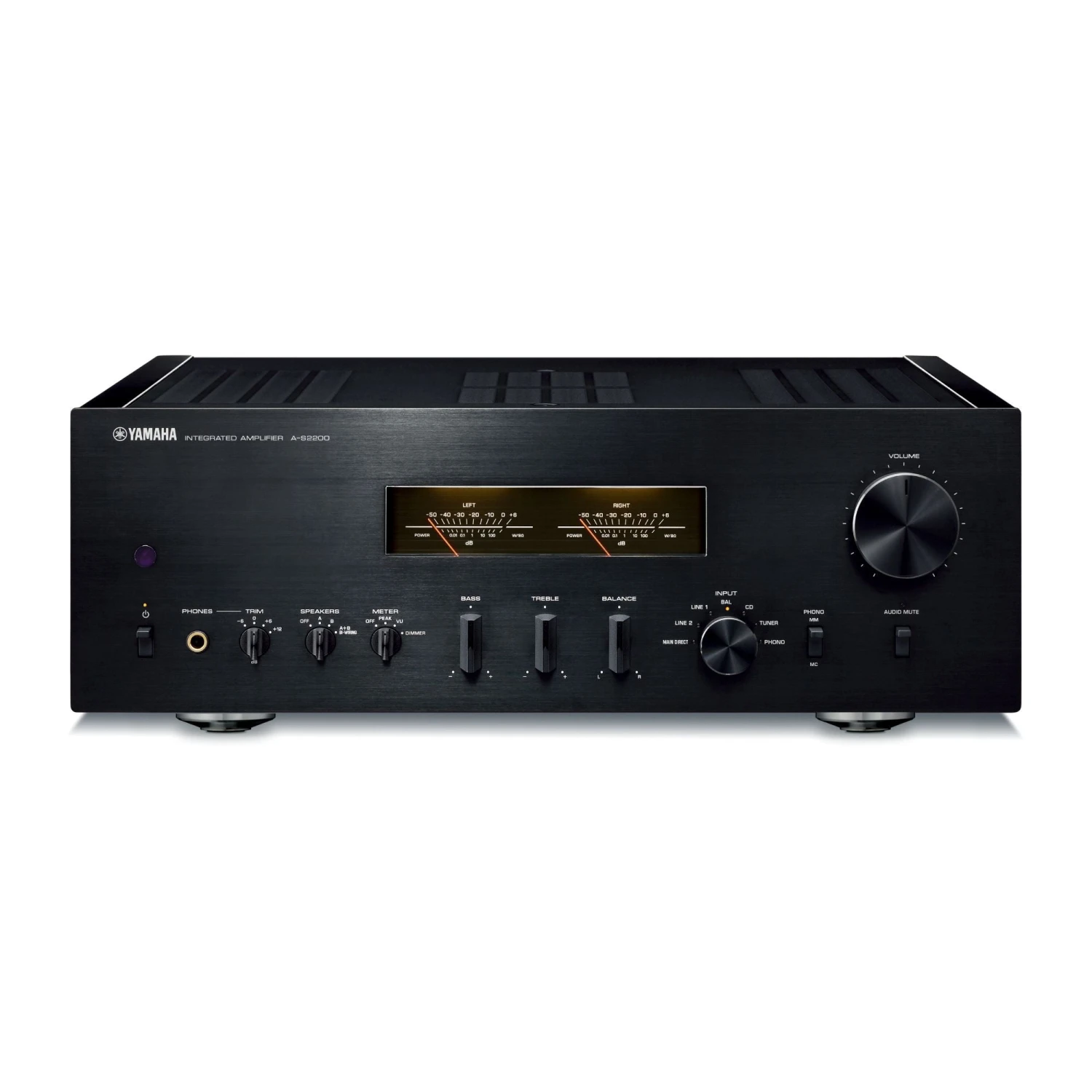

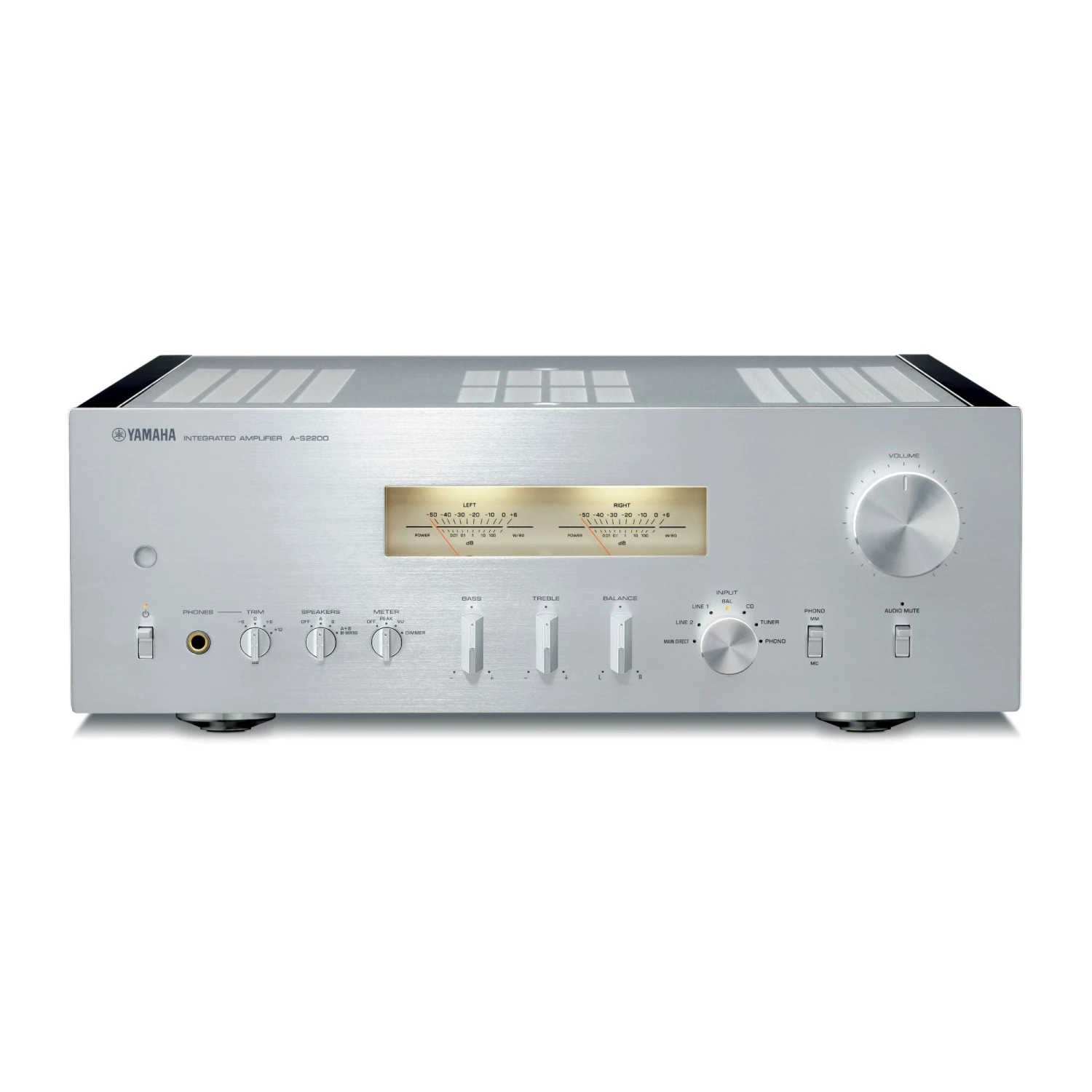

Yamaha A-S2200 2-Channel Integrated Amplifier

A performance fit for the global stage and inheriting many features from its big brother, the A-S2200 delivers an authentic, powerful yet somehow elegant and emotional Hi-Fi sound. Absolute musicality from a luxuriously beautiful instrument.

Emotion
Large toroidal transformer
Gorgeous level meters provide a visual representation of the music’s dynamics
Openness
Fully balanced circuitry from input to output
Low impedance design featuring thick wires for ground connection
Groove
Unmatched musicality that only comes from a musical instrument manufacturer
Mechanical ground concept maximizes rigidity for expressive and rhythmic bass

FEATURES

• Fully balanced circuit design from input to speaker out
• Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound
• Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
• Thick wires for ground connection contribute to low impedance design for a wide and open sound stage
• Mechanical ground concept maximizes rigidity for expressive and rhythmic bass

TECHNICAL SPECS

• Rated Output Power: [20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)
• High Dynamic Power/Channel (8/6/4/2 ohms): 105/135/190/220 W
• High Dynamic Power/Channel (8/6/4/2 ohms): ≧ 250 (1 kHz, 8 ohms): +0 / -3 dB (5 Hz-100 kHz) , ＋0 / -0.3 dB (20 Hz-20 kHz)
• Damping Factor: ＋/-0.5 dB (PHONO (MM/MC))
• Frequency Response: +0 / -3 dB (5 Hz-100 kHz) , ＋0 / -0.3 dB (20 Hz-20 kHz)
• RIAA Equalization Deviation: ＋/-0.5 dB (PHONO (MM/MC))
• Total Harmonic Distortion (20Hz to 20kHz): PHONO MC→LINE2 OUT: 0.02 % (1.2 Vrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL→SP OUT: 0.035 % (50 W/8 ohms）
• Signal-to-Noise Ratio: PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB
• Input Sensitivity: [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms
• Transformer: 625VA (Toroidal)
• Dimensions (W x H x D): 17-1/8″ x 6-1/8″ x 18-1/4″
• Weight: Weight 50.0 lbs
