Rotel C8 Distribution Amplifier

Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads.

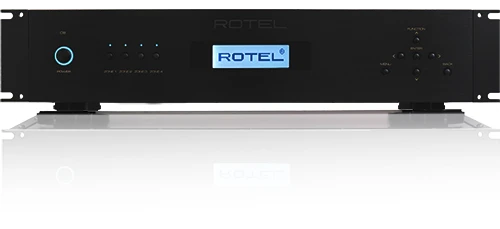

The C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.

FEATURES

• 8 x 70 Watts of robust class AB power, 4 Ohms
• Class AB amplifier design

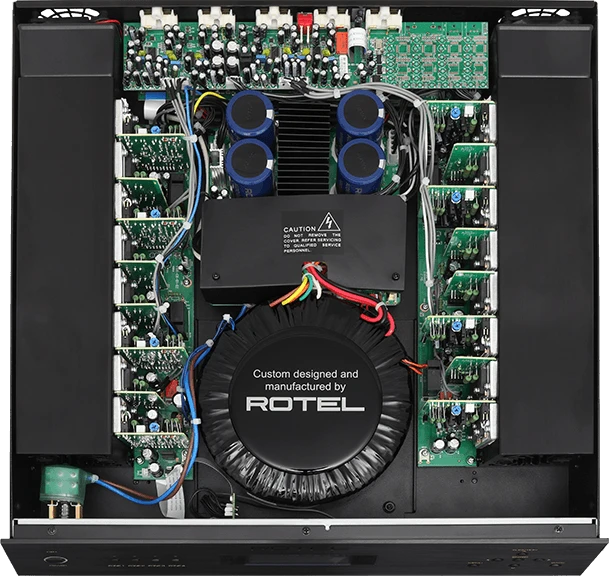

• Custom engineered toroidal transformer
• 12 volt trigger input
• Rack ears included

TECHNICAL SPECS

• INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.1%
• DAMPING FACTOR (20Hz – 20kHz, 8Ω): 80
• TONE CONTROLS: ± 10dB at 100Hz / 10kHz
• CROSSTALK / SEPARATION >50dB
• INPUT SENSITIVITY: Line Level Inputs: 0.3V
• INPUT IMPEDANCE: Line Level Inputs: 31kΩ
• INPUT OVERLOAD: Line Level Inputs (RCA): 2.8V
• MAXIMUM POWER OUTPUT: 70W/Ch (8 channels driven, 4Ω)
• CONTINUOUS POWER OUTPUT: 50W/Ch (8 channels driven, 8Ω)
• TOTAL HARMONIC DISTORTION (THD): <0.1%
• FREQUENCY RESPONSE: Line Level Inputs: 10Hz – 100kHz, +0dB, 0 ± 0.5dB
• DIMENSIONS (W × H × D): 430 × 97 × 414mm (17″ × 3.9″ × 16.3″)
• FRONT PANEL HEIGHT: 2U / 88.1mm (3.5″)
• POWER REQUIREMENTS: 120V, 60Hz
• POWER CONSUMPTION: 570W
• STANDBY POWER CONSUMPTION
• Normal: <0.5W
• Network Standby: <2W
• NET WEIGHT: 16.7kg (36.81lbs.)
