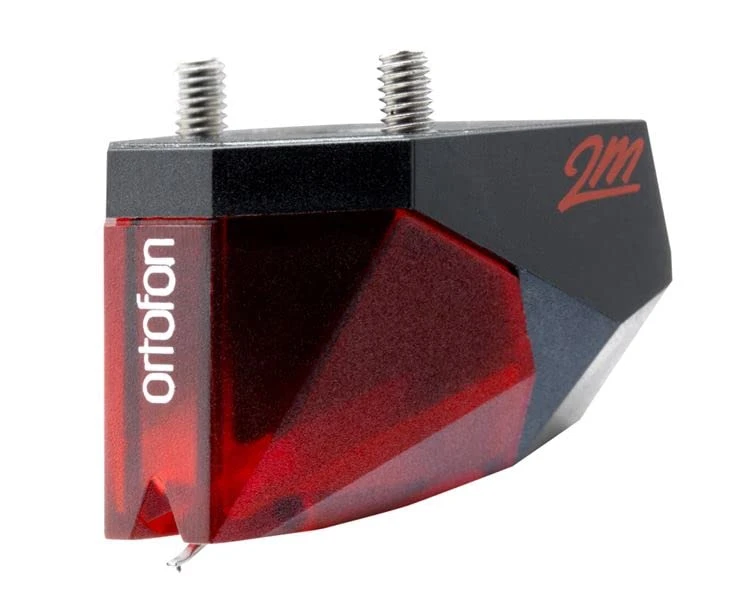

Ortofon 2M Red Verso Moving Magnet Cartridge

The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire.

An improved engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.

The cartridge body is manufactured from Hopelex, which ensures high rigidity while eliminating unwanted resonances.

Ortofon has optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

TECHNICAL SPECS

• Output voltage at 1000 Hz, 5cm/sec. – 5.5 mV
• Channel balance at 1 kHz – 1.5 dB
• Channel separation at 1 kHz – 22 dB
• Channel separation at 15 kHz – 15 dB
• Frequency response – 20-20.000 Hz + 3 / – 1 dB
• Tracking ability at 315Hz at recommended tracking force – 70 µm
• Compliance, dynamic, lateral – 20 µm/mN
• Stylus type – Elliptical
• Stylus tip radius – r/R 8/18 µm
• Tracking force range – 1.6-2.0 g (16-20 mN)
• Tracking force, recommended – 1.8 g (18 mN)
• Tracking angle – 20°
• Internal impedance, DC resistance – 1.3 kOhm
• Internal inductance – 700 mH
• Recommended load resistance – 47 kOhm
• Recommended load capacitance – 150-300 pF
• Cartridge colour, body/stylus – Black/Red
• 2M standard and 2M Verso cartridges weight – 7.2 g
