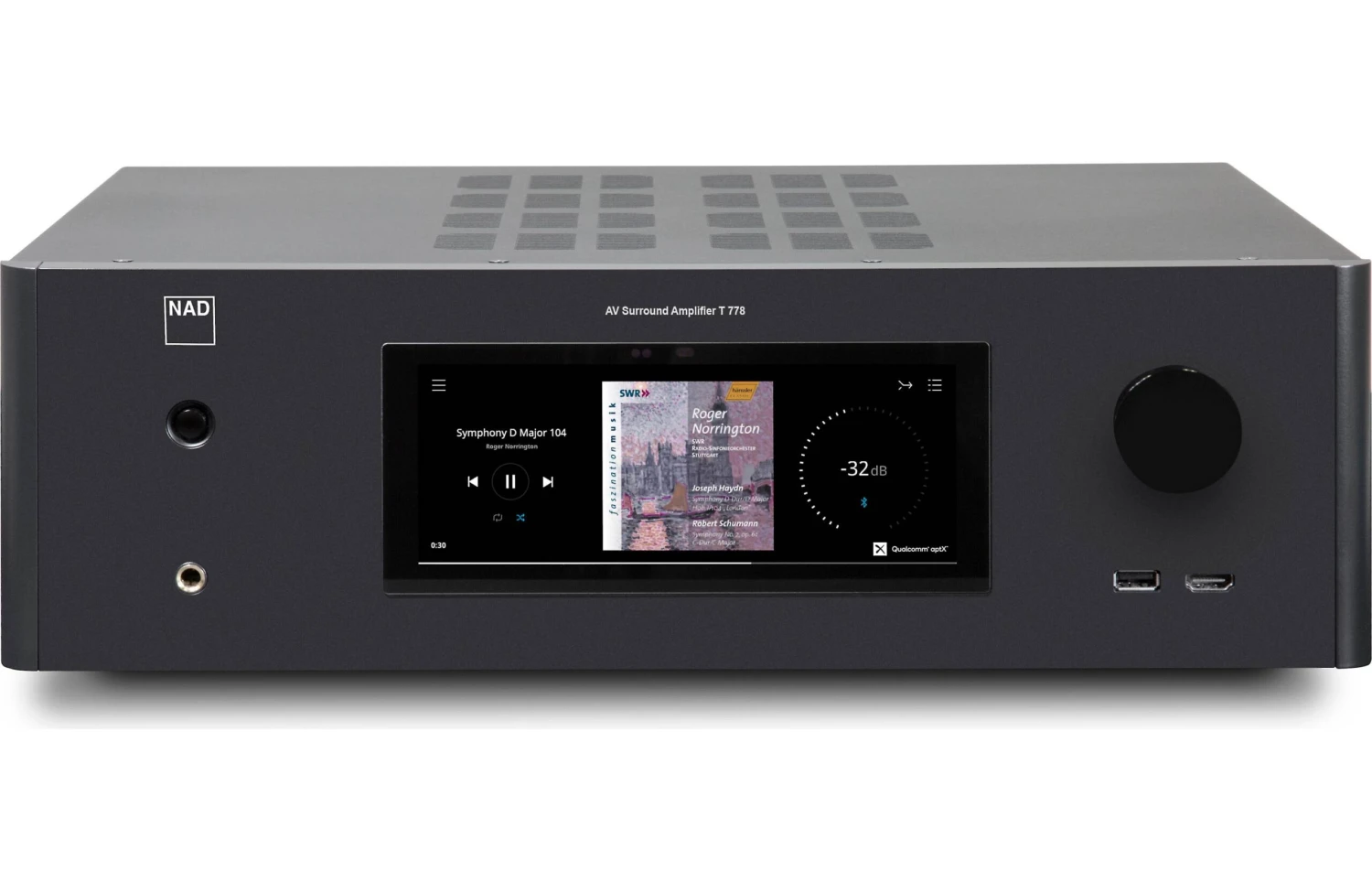

NAD T778 9.2-channel Home Theater Receiver With Wi-Fi, BluOS, Bluetooth, Apple AirPlay 2, And Dolby Atmos

NAD’s reference Audio Video Receiver (AVR) is a cutting-edge powerhouse for state of the art music and home theater. Well known for our high value/ high performance reputation in the AVR category, the brand’s reference model builds on that legacy with an expansion of unwavering philosophy of real-world performance, simplicity of operation, and future upgradeability.

Surround yourself with perfection. The T 778 represents NAD’s unwavering philosophy of real-world performance, simplicity of operation, and future upgradability. Only NAD offers Modular Design Construction (MDC), our proven method for preventing premature obsolescence. Dolby®Atmos™ and DTS® Master Audio combine with Dirac Live™ room correction to deliver hyper-realism that captures every dimension of a performance. Add bit-perfect UHD 4K video pass-through and the T 778 delivers the most accurate sound and image experience you’ve ever had. Musical performance is outstanding with High Res Multi-room streaming via BluOS and nine channels of high current amplification capable of powering any loudspeaker to its maximum potential. The T 778 is second-to-none in terms of flexibility and up-to-the-minute digital technology.

FEATURES

• 140 Watts FTC power at 8 Ohms and 170 Watts at 4 Ohms
• 9 x 85 Watts FDP (Full Disclosure Power), all channels drivensimultaneously at full bandwidth at rated distortion
• 165 Watts IHF Dynamic Power at 8 Ohms and 280 Watts at4Ohms
• Hybrid Digital Amplifier Technology
• TFT touch screen and improved ergonomics for user-friendlyoperation
• UHD 4K video pass-through•HDMI CEC/eARC
• High-Res BluOS enabled Network Streaming• Dirac Live Room Correction
• MQA decoding available on all digital inputs•Apple AirPlay2
• MDC (Modular Design Construction) offers ability toupgradeto future digital formats as they become available.Two MDCslots provided.
• CI friendly- RS232 Serial Control Port.
• 12V Trigger In/Out• IR In with learning function
• 3U Low profile rack-mount chassis
• Gross Dimensions: 17 1/8 x 6 13/16 x 16 3/4” (W x H x D)

TECHNICAL SPECS

• AMPLIFIER
• FTC
• 8 Ohms:  140W (21.5dBW)
• 4 Ohms:  170W (22.3dBW)
• Full Disclosure Power (all channels driven simultaneously at full bandwidth at rated distortion):  9 x 85W
• IHF Dynamic Power
• 8 Ohms:  165W (22.2dBW)
• 4 Ohms:  280W (24.5dBW)
• Total harmonic distortion at rated power <0.08%
• IM distortion at 1/3 rated power: <0.03%
• Damping factor:  >300 (20Hz-1kHz, 8 ohms)
• Input sensitivity and impedance:  1.12Vrms (ref. 8 Ohms, VOL at 0dB)
• Frequency response:  +0.3/-0.8dB (ref. 1kHz, 20Hz-20kHz)
• Signal/noise ratio:  >100dB (ref. rated power at 8 Ohms, A-Weighted)
• Signal/noise ratio:  >85dB (ref. 1W at 8 Ohms, A-Weighted)

• PREAMPLIFIER
• LINE INPUT
• Frequency response:  ±0.3dB (ref. 20Hz – 20kHz)
• Signal-to-noise ratio:  >100dB (ref. 2V, A-Weighted)
• Total harmonic distortion:  <0.01%
• Input sensitivity:  245mVrms (ref. 2V)
• Maximum output level:  >4.5Vrms
• PHONO INPUT
• Input Sensitivity:  6.2mVrms (ref. 2V)(ref. 20Hz – 20kHz)
• Signal-to-noise ratio:  >80dB (ref. 2V, A-Weighted)
• Maximum Input Level:  >90mVrms (1kHz)
• Standby power:  <0.5W (full standby) /  <8W (network standby)
• Unit Dimensions (W x H x D): 17 3/16 x 5 9/16 x 16 15/16″**
• Net Weight:  12.1kg (26.7lb)
• Shipping Weight:  15.5kg (34.2lb)
