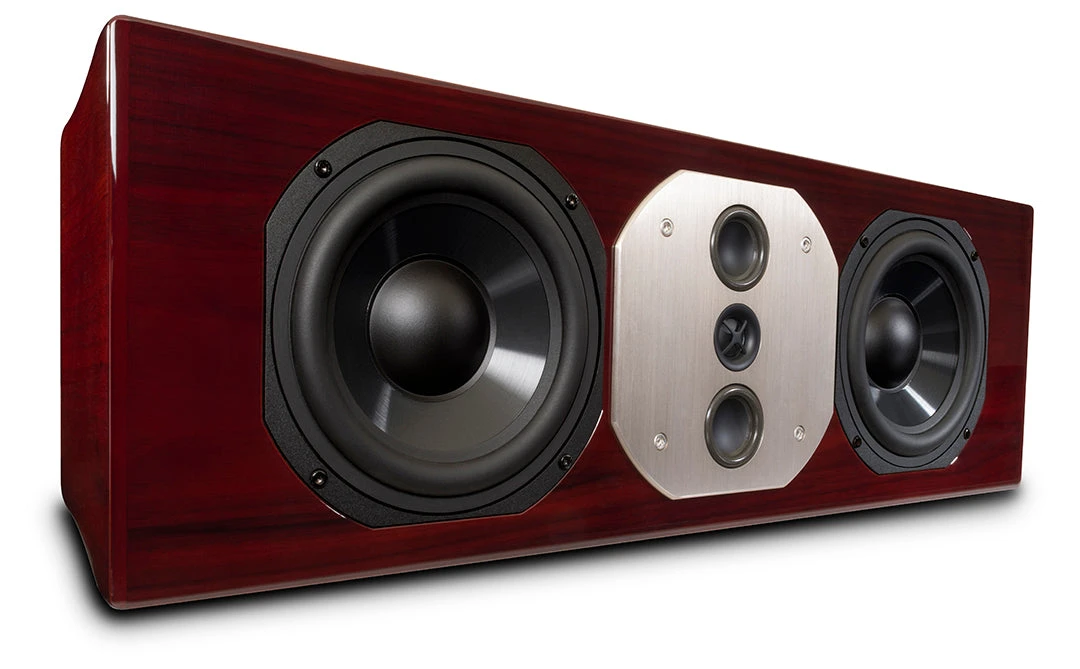

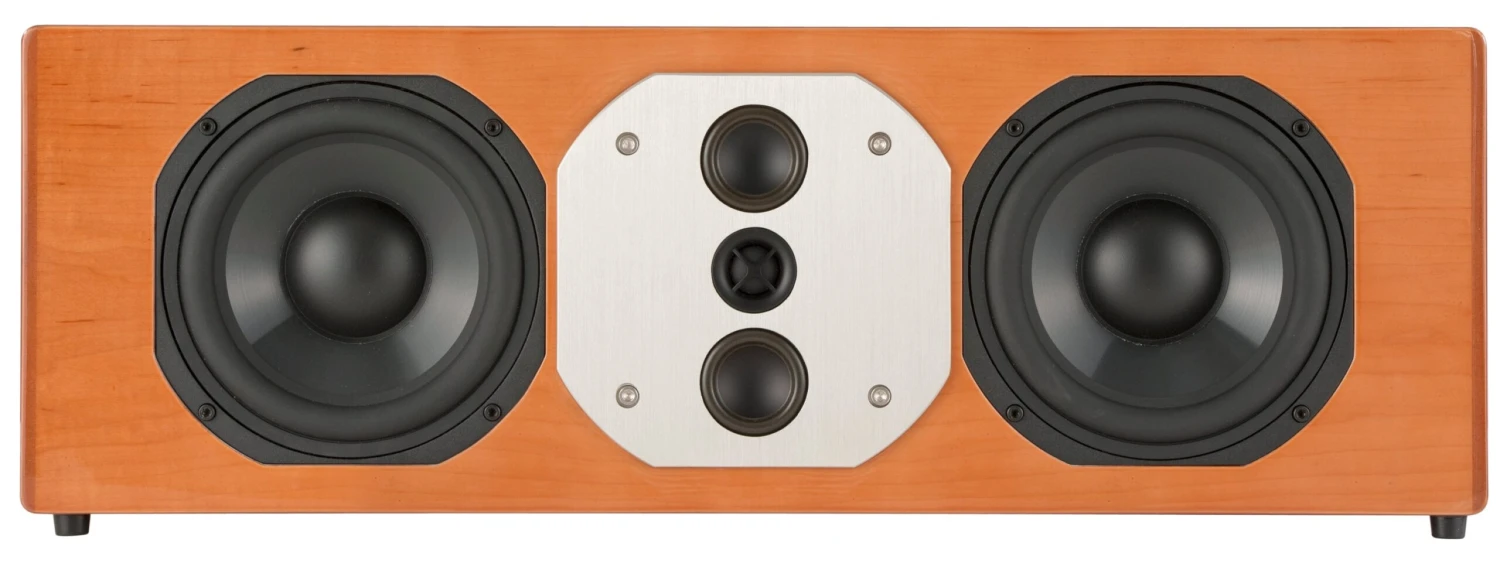

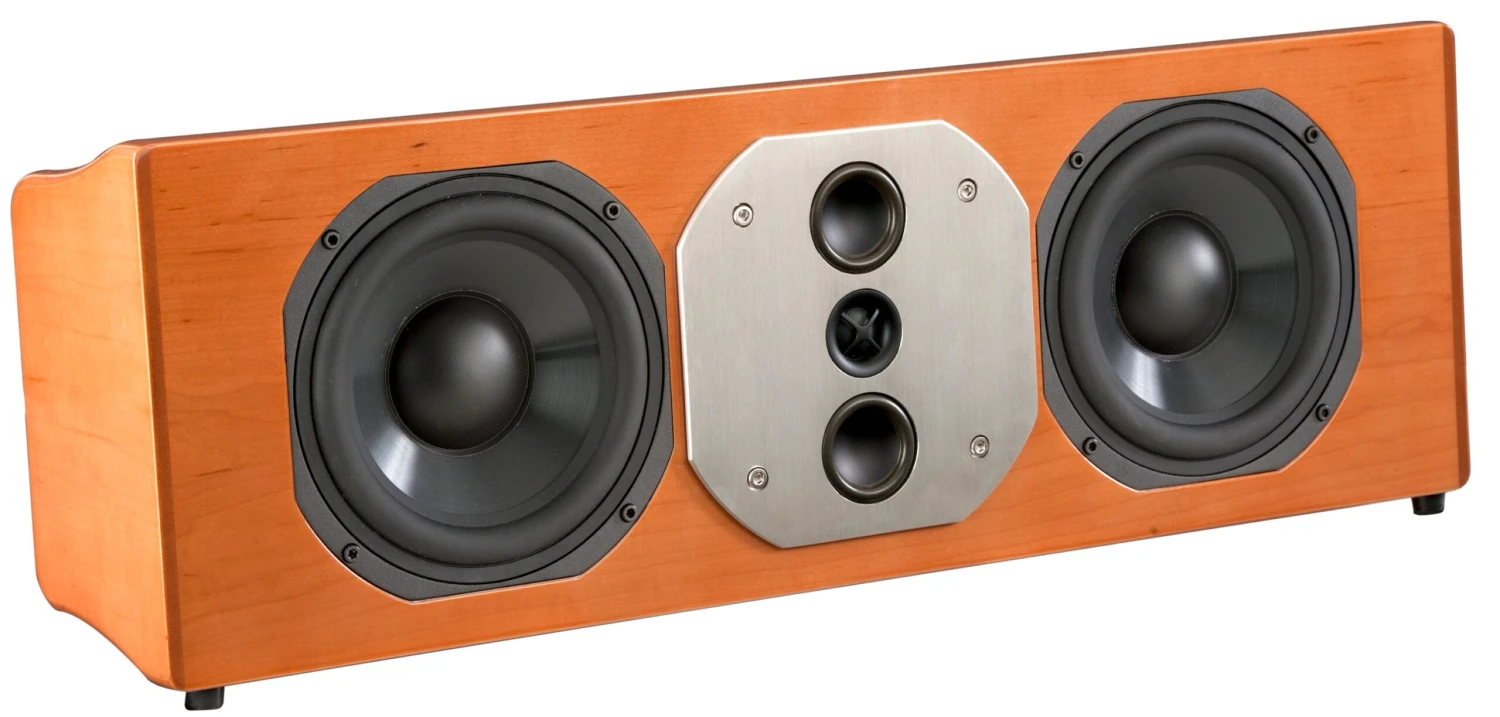

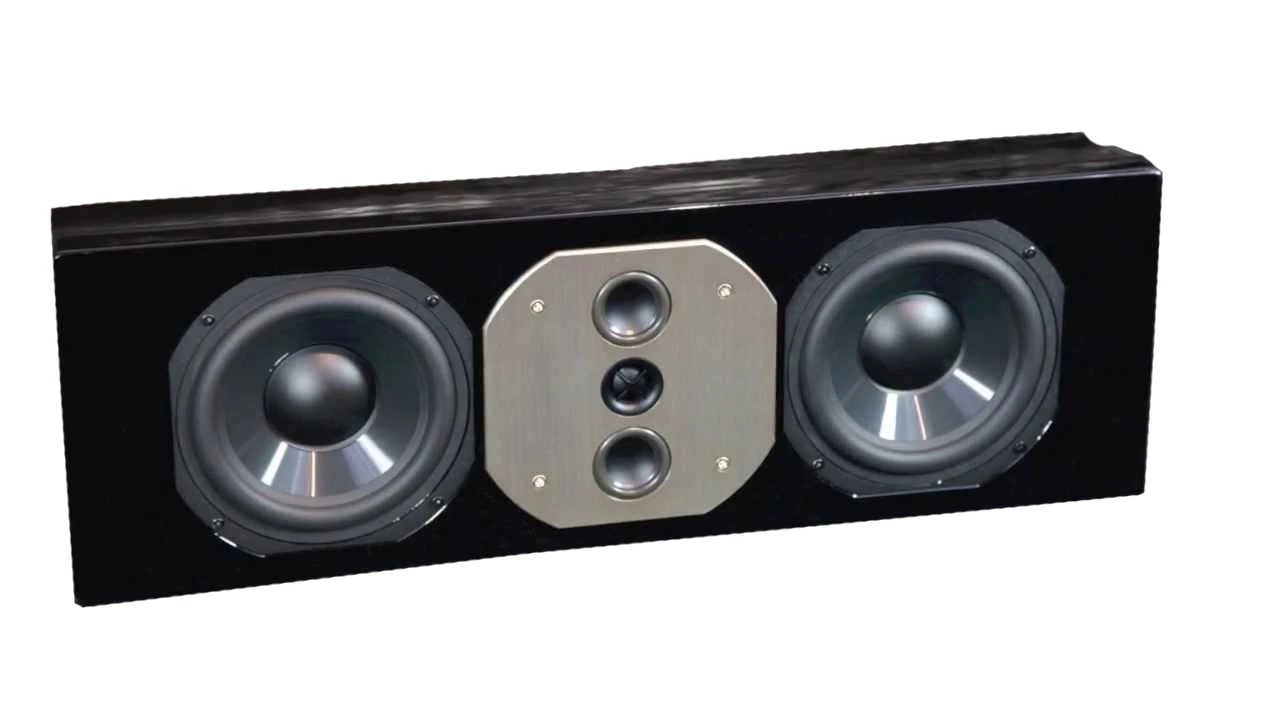

McIntosh LCR80 3-Way Center-Cannel Speaker

The LCR80 3-way Center-Channel Speaker projects an extremely wide sound-stage for a greater listening experience from a variety of seating positions, delivering an amazingly full-sounding performance for a speaker of such compact dimensions.

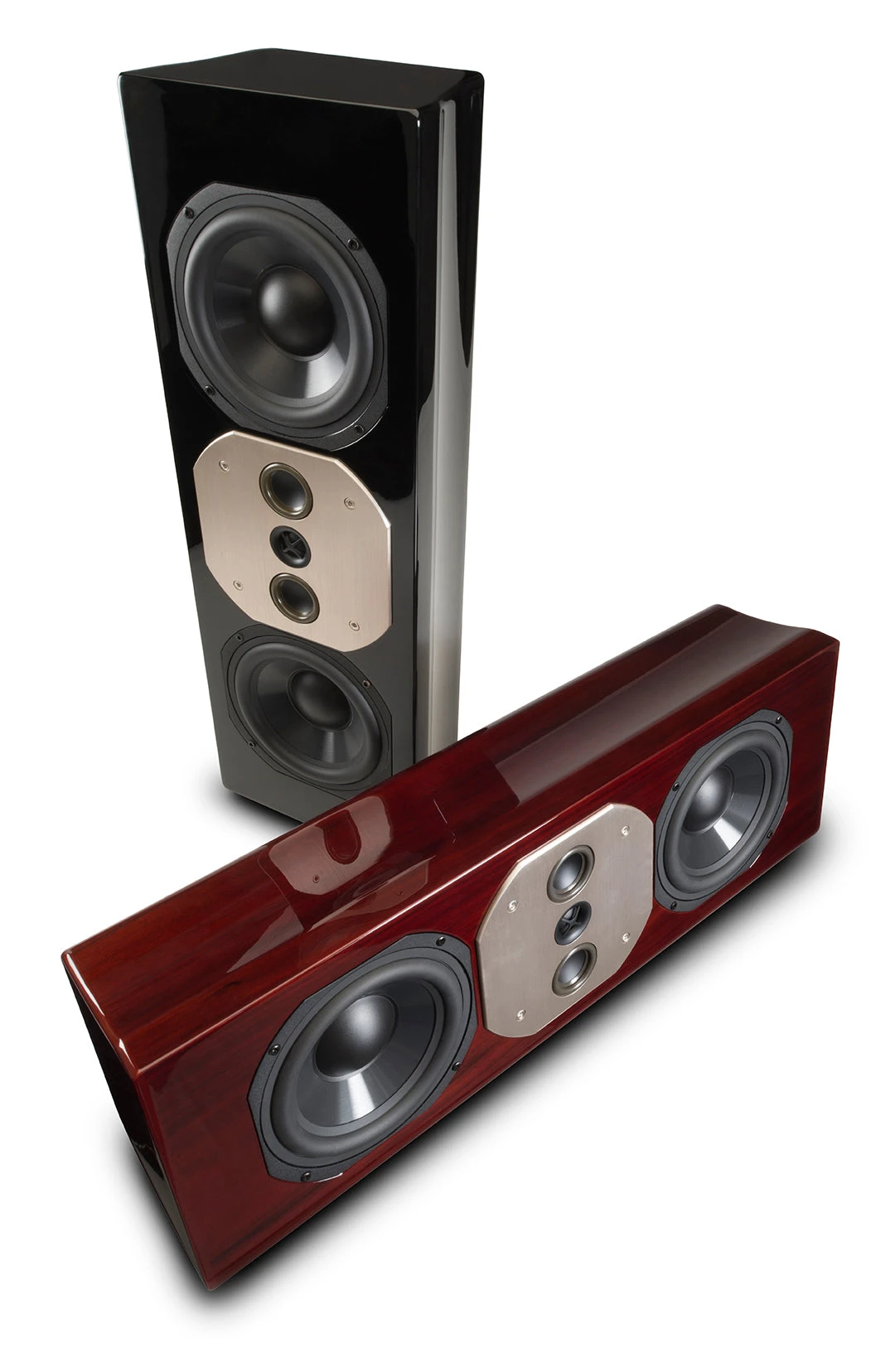

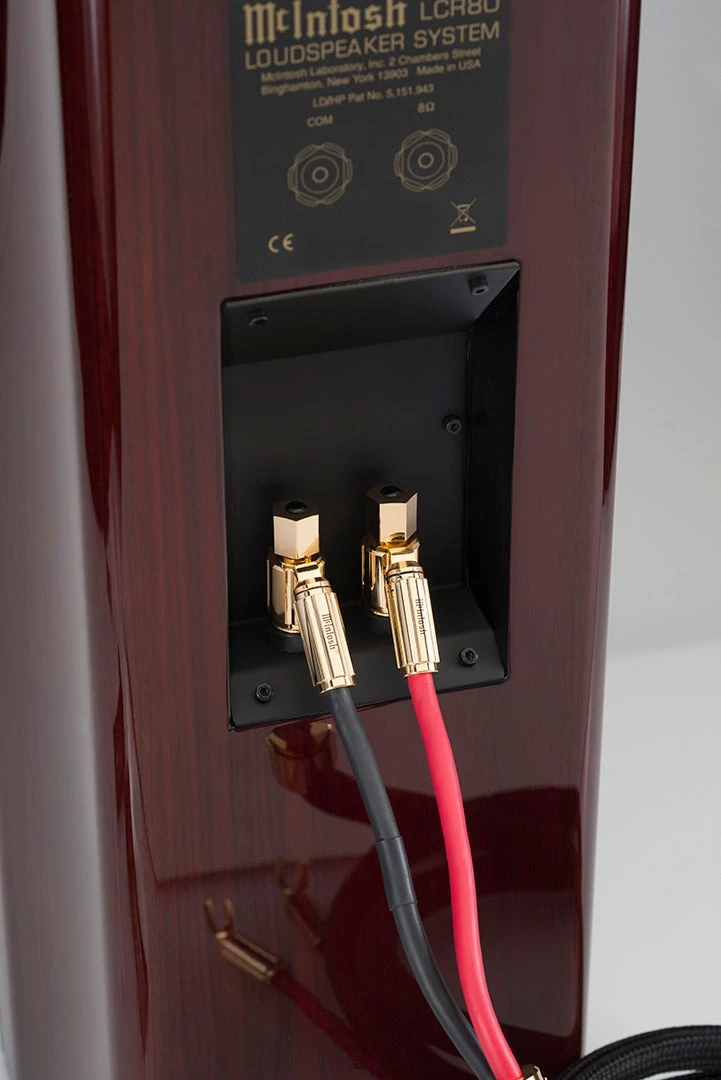

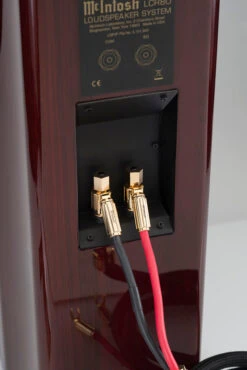

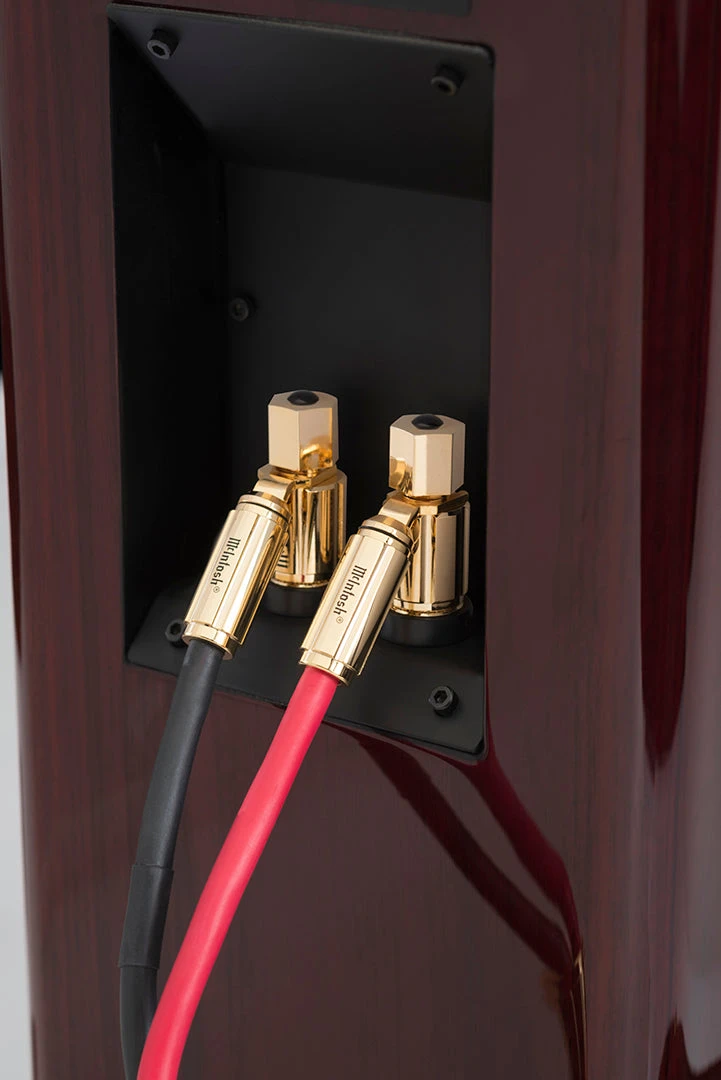

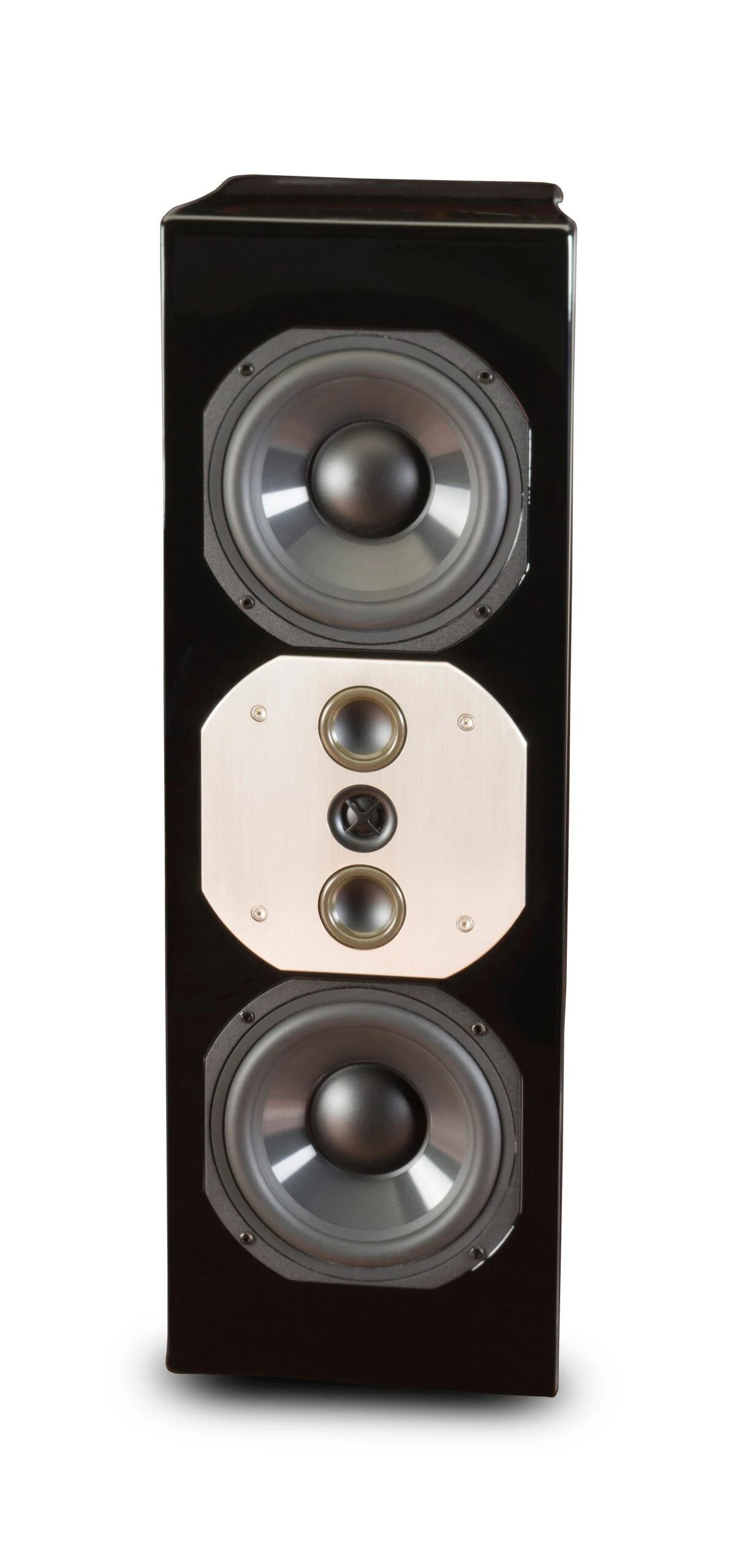

With its flexible design, it can be placed in horizontal, vertical or shelf mounted orientations. Complete mounting hardware is supplied for all positions. Patented McIntosh Solid Cinch™ speaker binding posts allow for a simple yet secure connection to your speaker cables, helping to ensure the best possible audio performance.

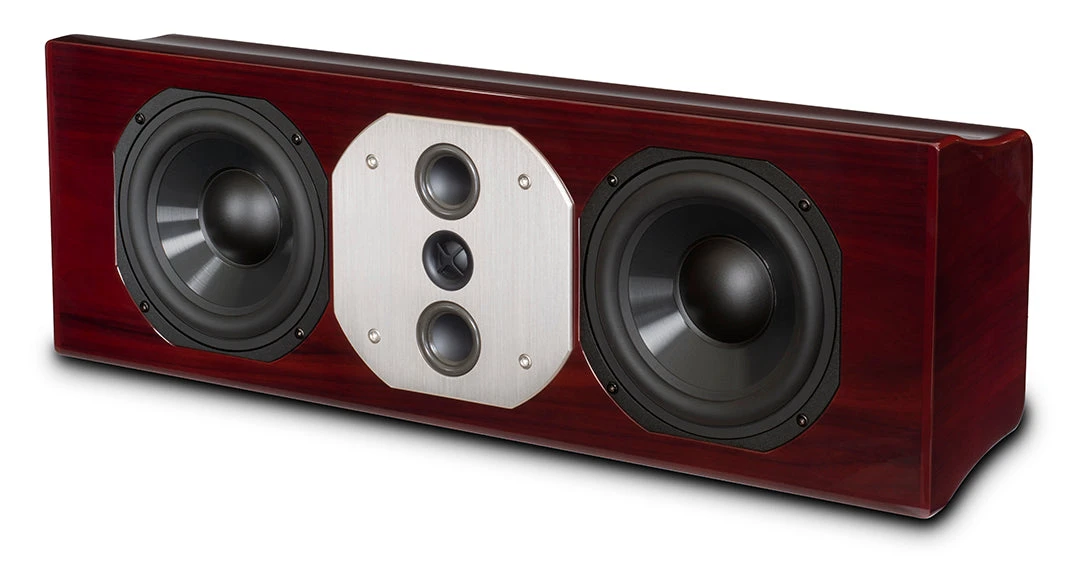

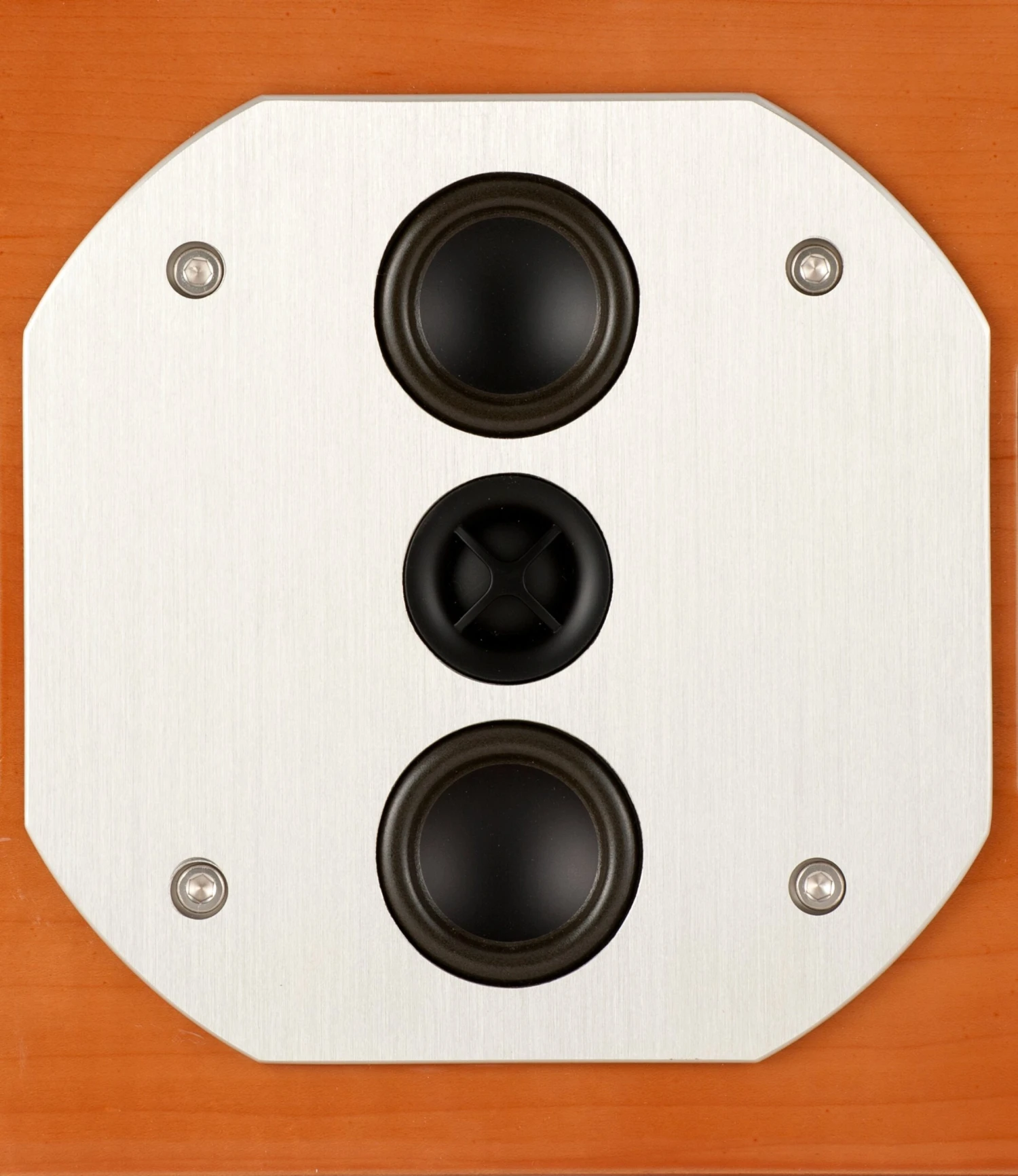

The machined alloy, high-frequency array is rotatable to optimize the sound for either vertical or horizontal placement without sonic compromise. McIntosh patented Low Distortion / High Performance (LD/HP®) woofers are combined with two midranges and a dedicated tweeter to deliver lifelike sound. Voiced to match the XR50 and XR100 speakers, LCR80 may be used for the left, center, or right channels in home theater systems or in special stereo applications.

FEATURES

• True 3-way center-channel speaker
• 80Hz to 45 kHz frequency response
• 6″ LDHP woofers (2)
• 2″ titanium mid / tweeters (2)
• 3/4″ titanium super tweeter (1)
• 300w music power-handling
• Voiced to match XR50 & XR100
• Patented McIntosh binding posts
• Handcrafted at McIntosh’s Binghamton, New York factory

TECHNICAL SPECS

• Impedance Nominal: 8 ohms

• Power Rating: 75 to 300w

• Frequency Response: 80 Hz to 45 kHz

• Sound Pressure Level: 2.8 V / 1 M 81 dB

• Crossover: 500 Hz, 8 kHz

• Number Of Woofers: 2

• Woofer Size: 6″

• Woofer Type: cast frame, LD/HP®, poly cone

• Number of Midranges: 2

• MIDRANGE SIZE: 2″

• MIDRANGE TYPE: inverted titanium dome

• Number Of Tweeters: 1

• Tweeter Size: 3/4″

• Tweeter Type: titanium dome

• System Type: sealed 3-way flexible placement

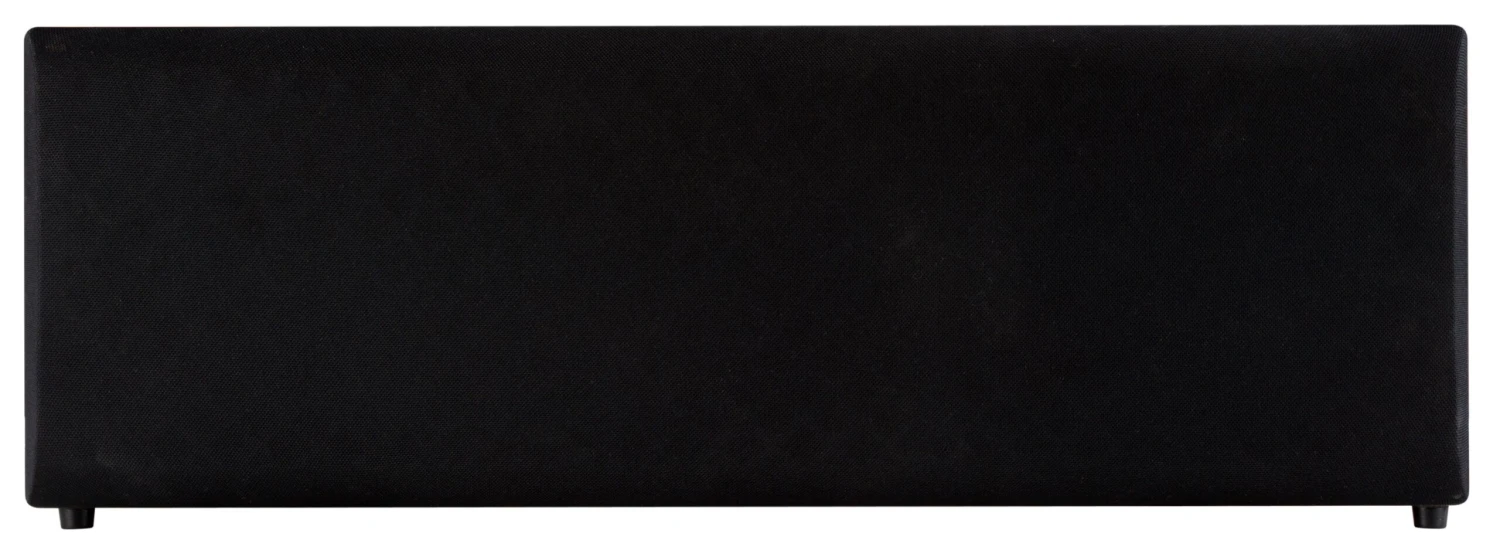

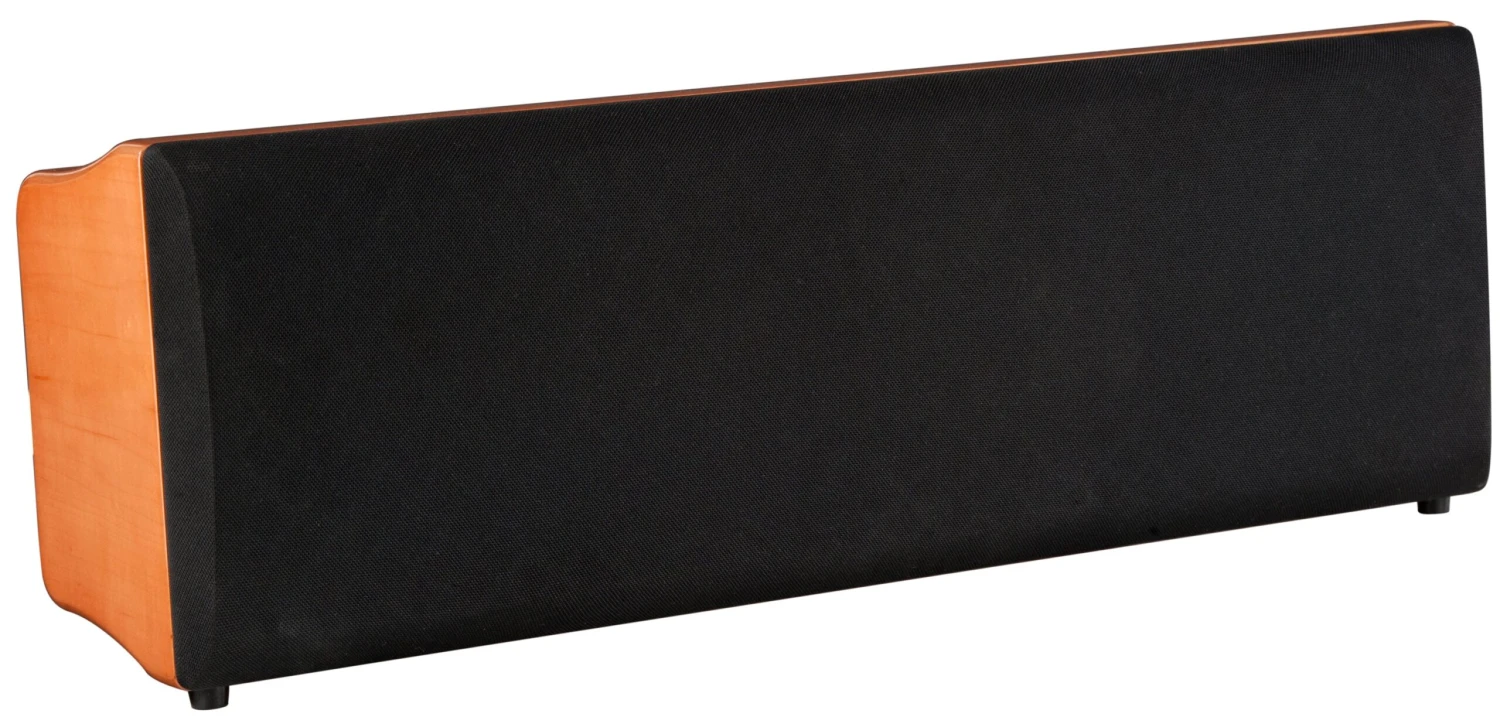

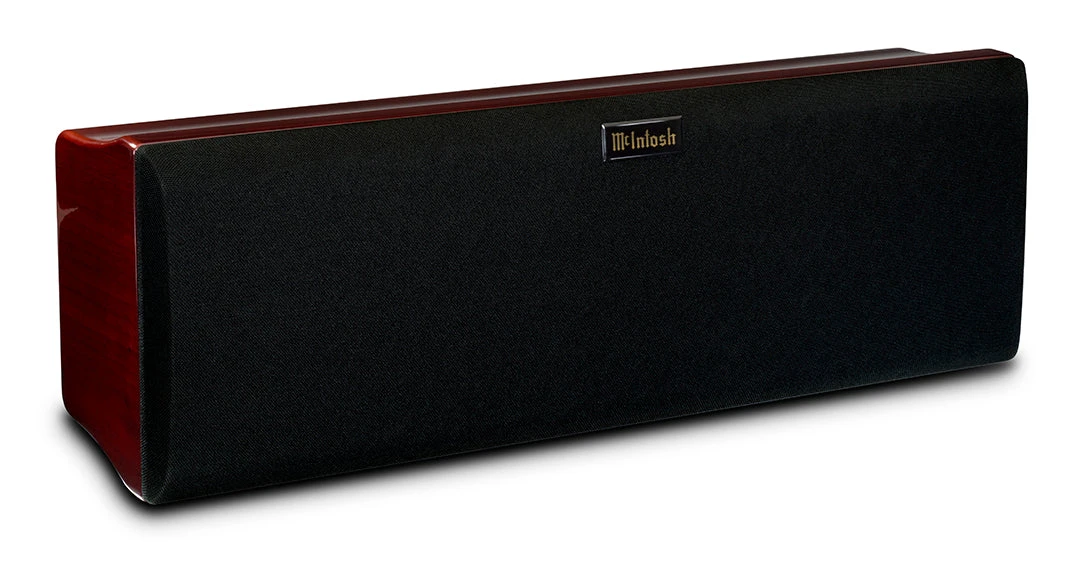

• Grille: black knit cloth, magnetically attached

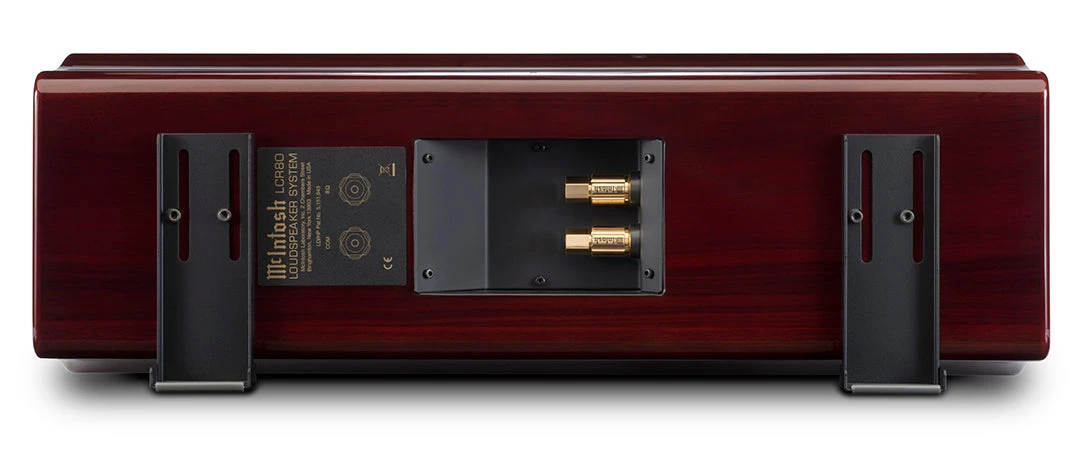

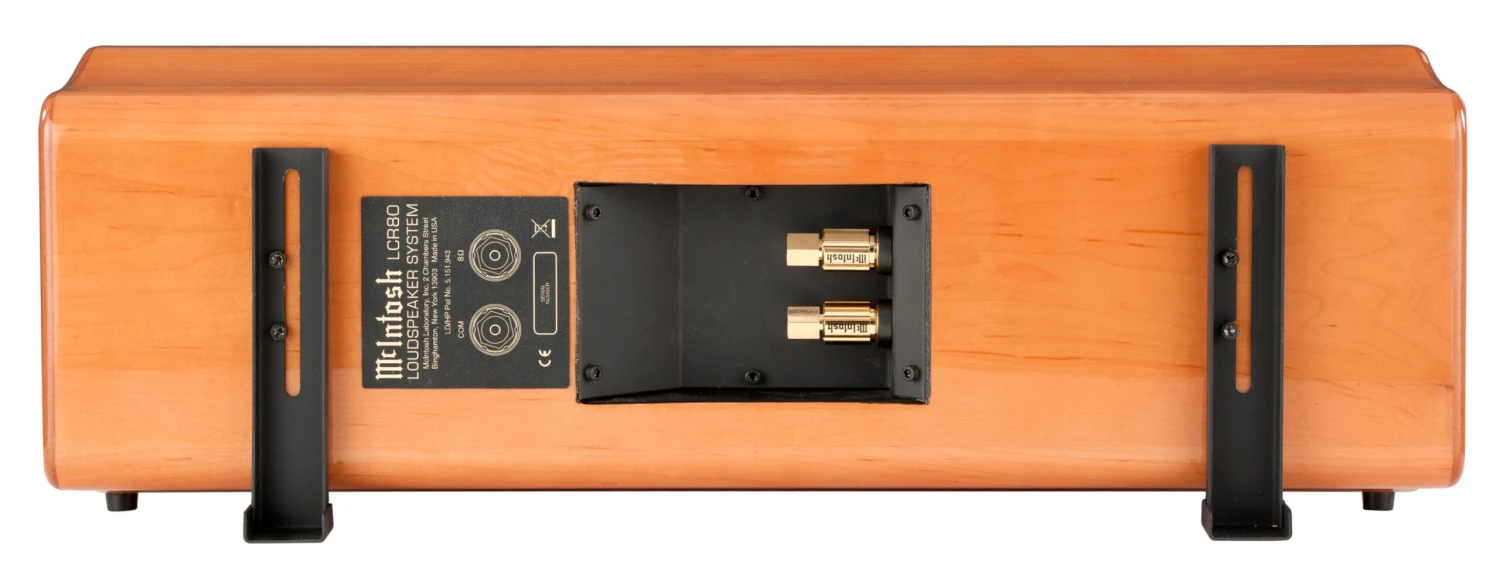

• Dimensions: 24″ (61 cm) x 8″ (20.3 cm) x 8-3/8″ (21.3 cm) (including angled wall mounting brackets)

• Weight: 24 lbs

• Shipping Weight: 30 lbs
