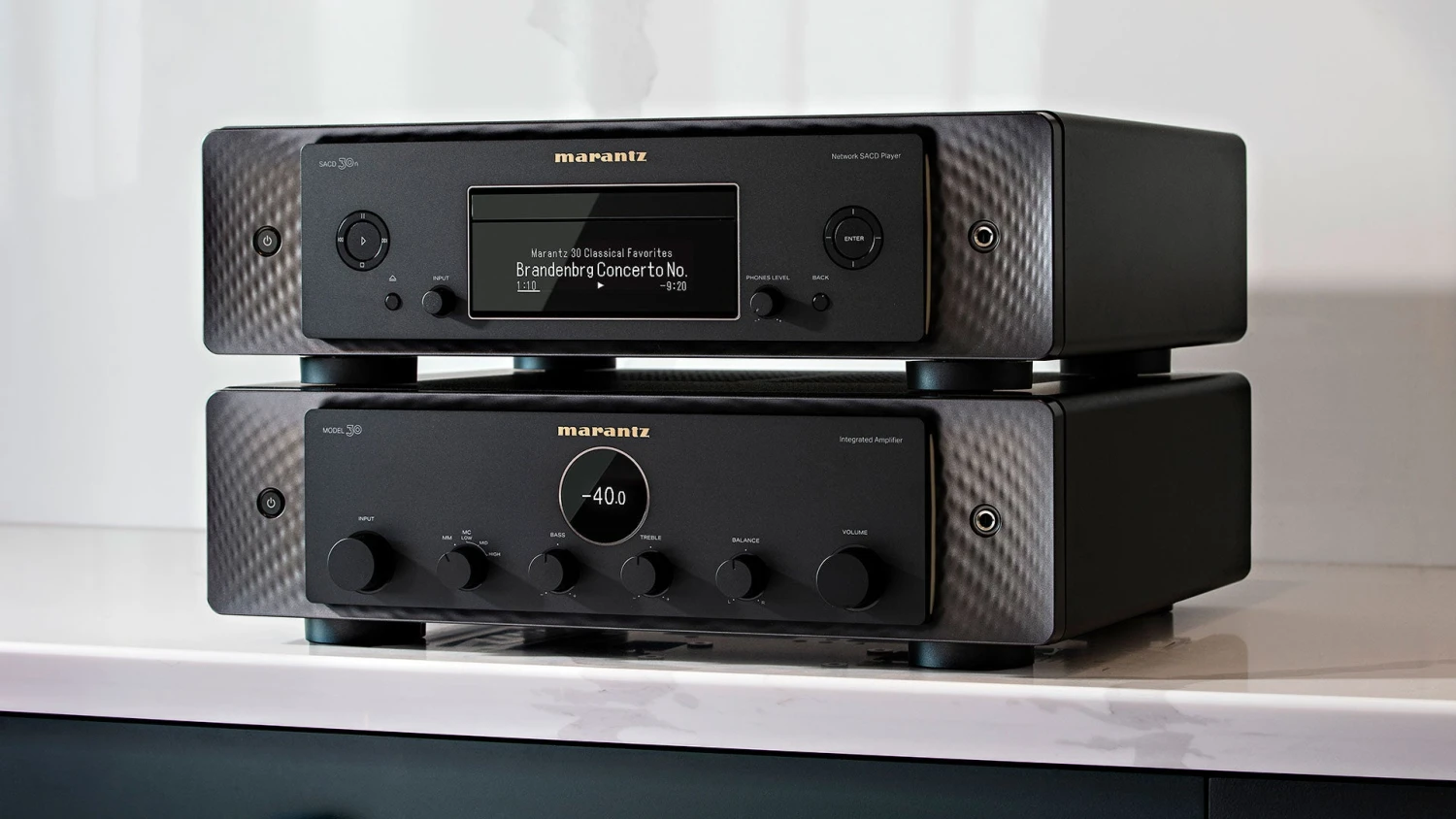

Marantz MODEL 30 Integrated Amplifier And Networked SACD 30n SACD / CD Player Bundle

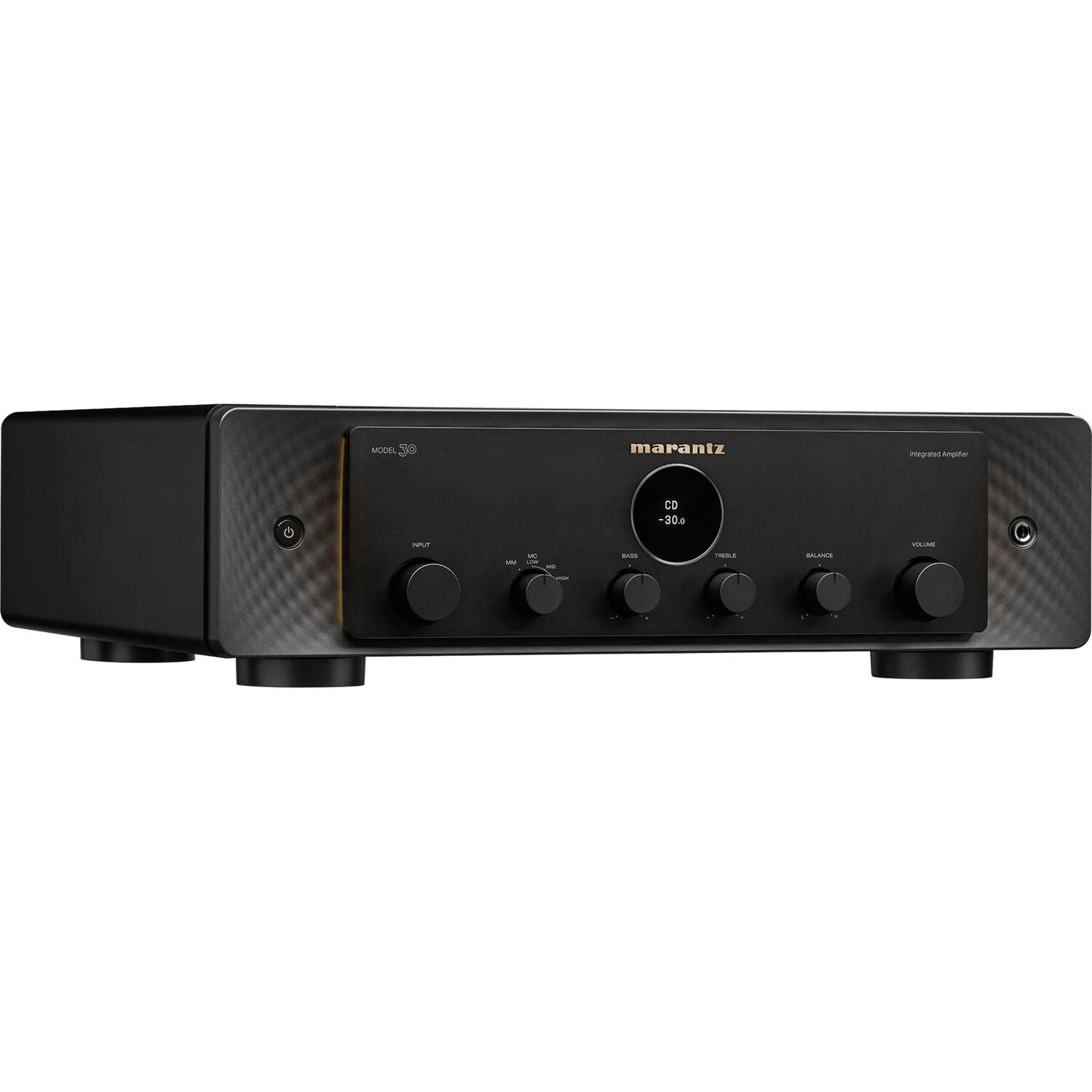

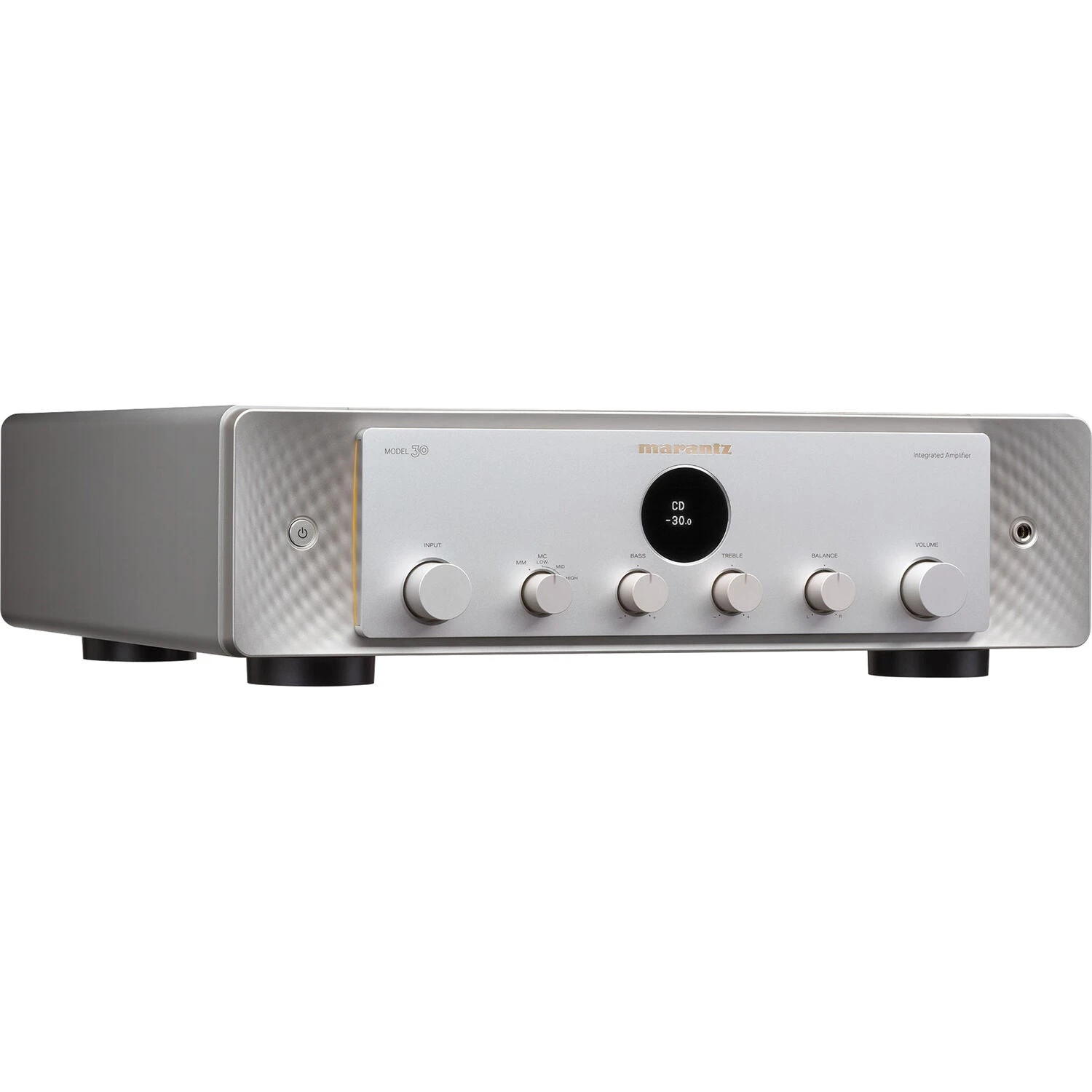

Model 30

Get the most musical sound possible from this Master-tuned integrated amplifier. Its custom-designed HDAM delivers exquisite detail and unforgettable musicality from any style of music.
Featuring a fully discrete, two-stage design for minimal interference, and unique Marantz HDAM technology for signal purity, MODEL 30 offers exceptional sound quality.

FEATURES

• Tuned with passion: Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.
• Designed to last: You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.
• Fully discrete and accurate detailing: Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
• Extraordinary sensitivity: Designed to replicate the sensitivity and feel of a vintage analog amplifier even when simply adjusting the volume.

TECHNICAL SPECS



• Rated Output Power:
  • 100W + 100W (8ohm)
  • 200W + 200W (4ohm)
• Amplifier Circuit Switching Amp (Hypex NC500/SMPS600 by single)
• Power Trans: Toroidal w/case
• Volume: Electric
• Bass / Treble / Balance Control
• Source Direct
• Wide Range 5Hz – 50kHz
• Total Harmonic Distortion 0.005%
• (1kHz, 8Ω)
• Damping Factor 500
• Input Sensitivity: Phono input MM: 2.3 mV / 39 kohm
• MC: 250
• Input Sensitivity: CD/LINE/RECORDER 220 mV / 13 kohm
• Input Sensitivity: Power Amp input 1.1 V / 13 kohm
• SN Ratio PHONO (MM): 88dB
• PHONO (MC): 75dB
• CD: 107dB
• Phono Input yes (MM/MC)
• Marantz Musical Premium Phono EQ
• Ext. Pre Input (Power Amp Direct)
• Preout

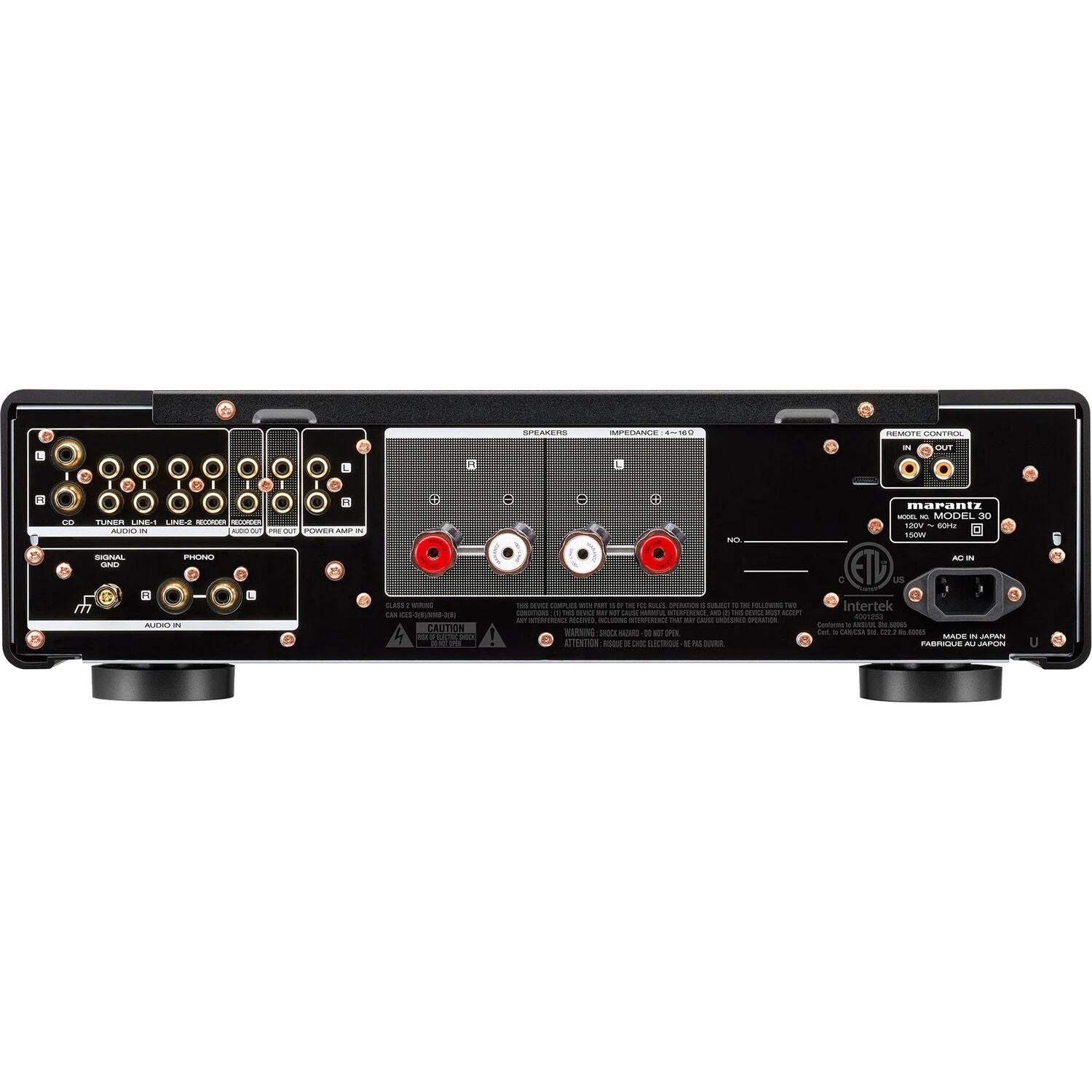

• Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out 6/1
• (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
• * [PHONO] and [CD] inputs = high grade terminals.
• Speaker Terminal Marantz Original
• SPKT-100+
• Remote Control Bus Terminal yes (Cinch)
• Display yes (Porthole, OLED)
• App Control via Network Player
• System Remote Controller
• (New system remote controller to control SACD 30 and MODEL 30)
• Unit (W x H x D mm) 443 x 130 x 432
• Packaging Dimensions (W x H x D mm) 534 x 255 x 522
• Net weight 14.8kg
• Packaging gross weight 17.6kg
• Power Consumption 130W
• at Standby 0.2W
• AC Inlet
• Owner’s Manual Web Manual
• Quick Start Guide Paper
• Chassis Material SECC
• Chassis Layer Triple
• Foot:  New
• Panel Color SG / BK
• Top cover Steel
• Edge-lighting yes (Dimmer)
• Volume Knob, Power button, Input Selector, Front Center Panel, Side cover: Aluminum
• Bass/Treble/Balance/ REC Out Sel knobs REC Out-->PHONO (Aluminum)
• Side screw Copper plated

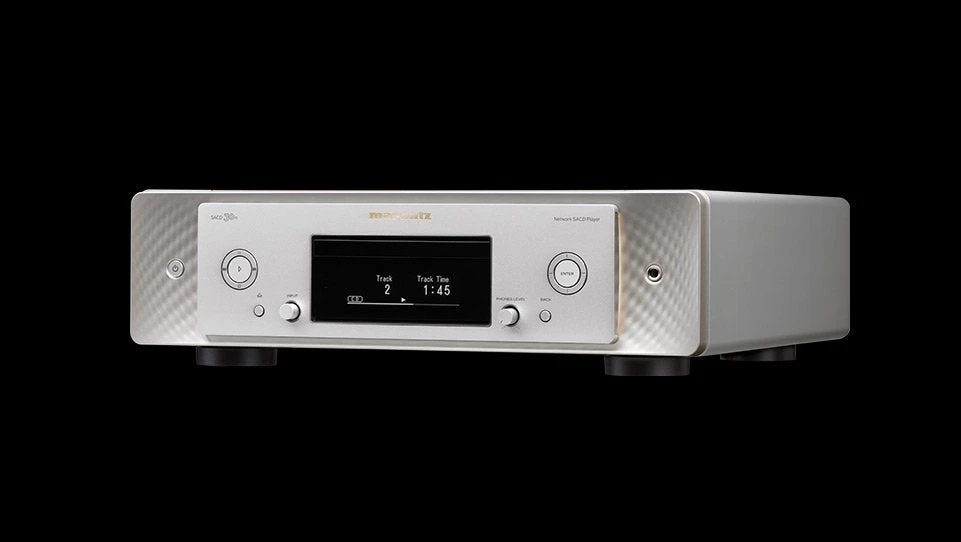

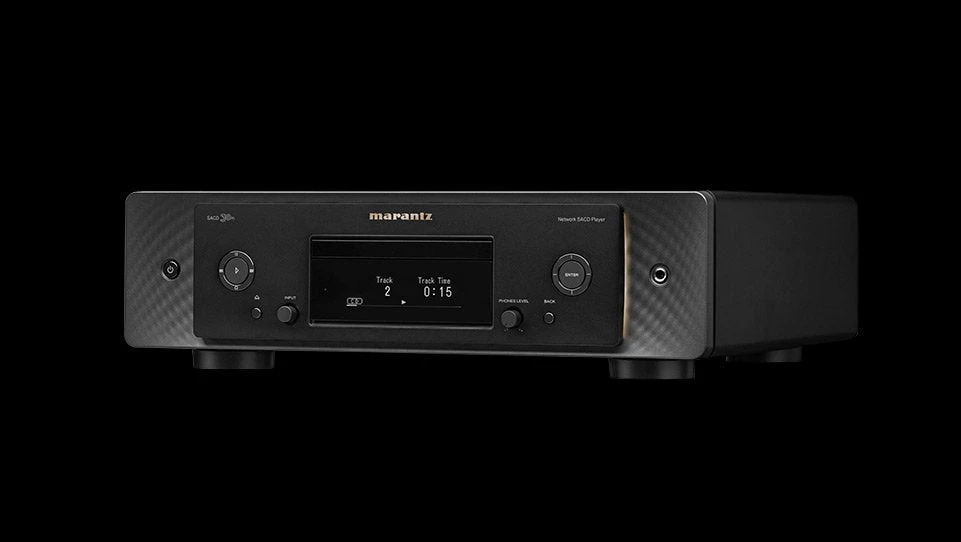

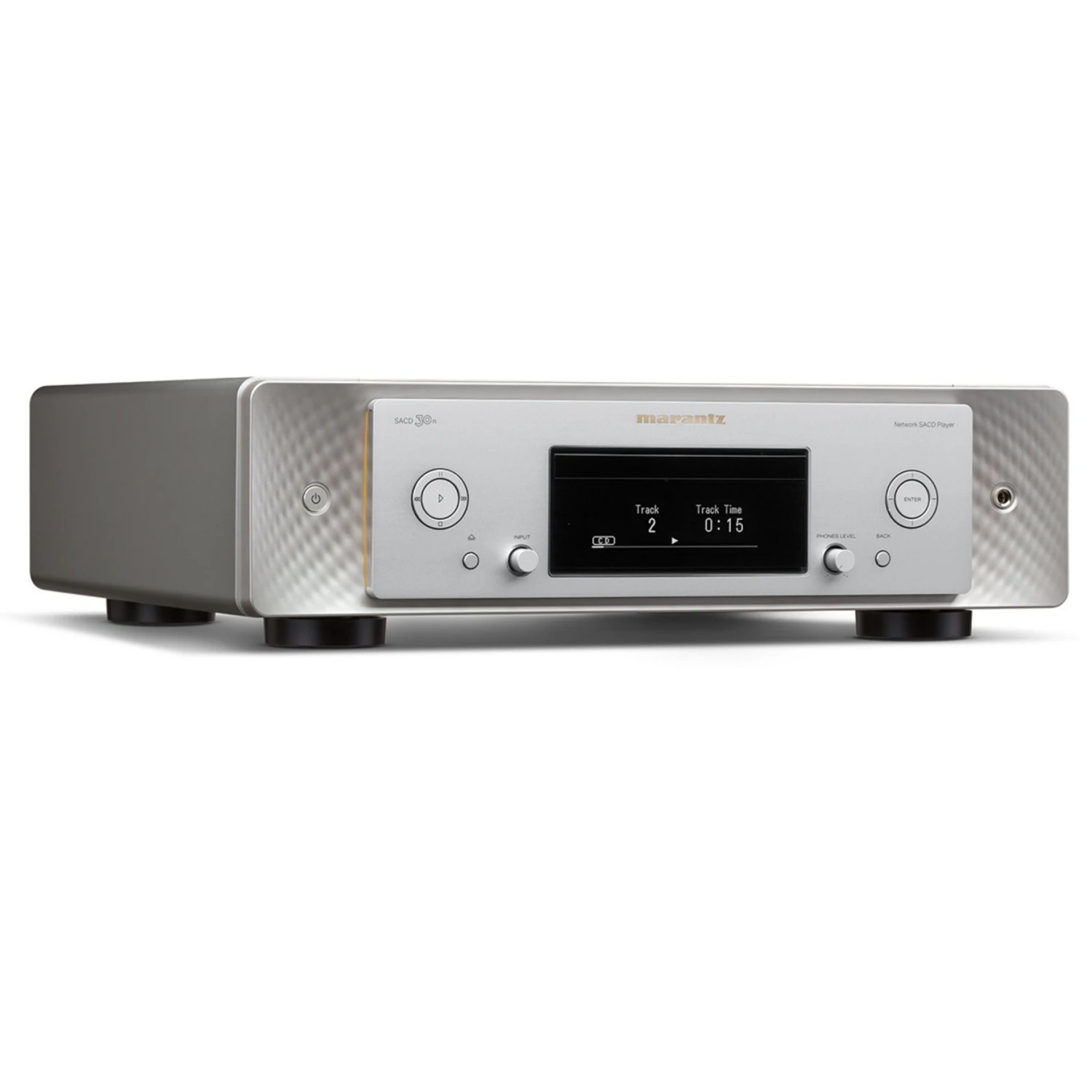

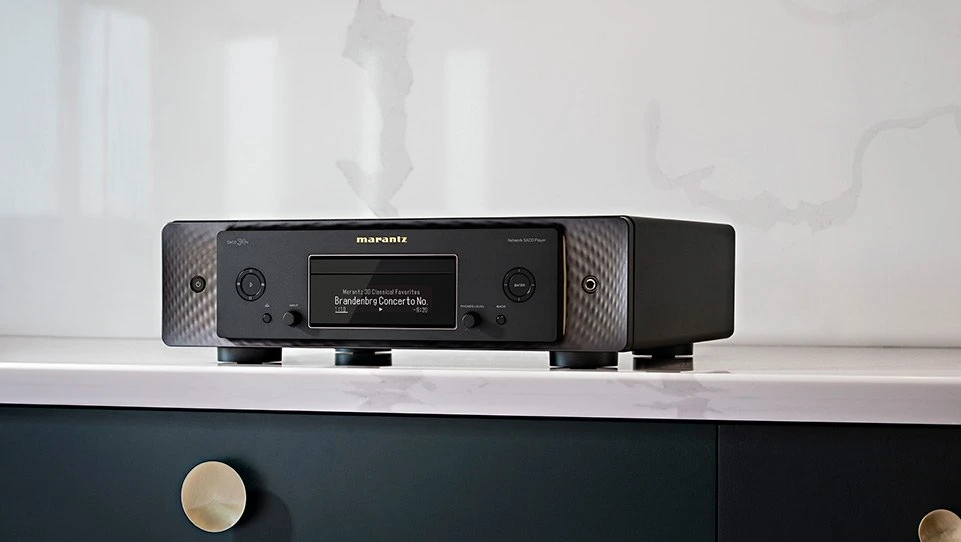

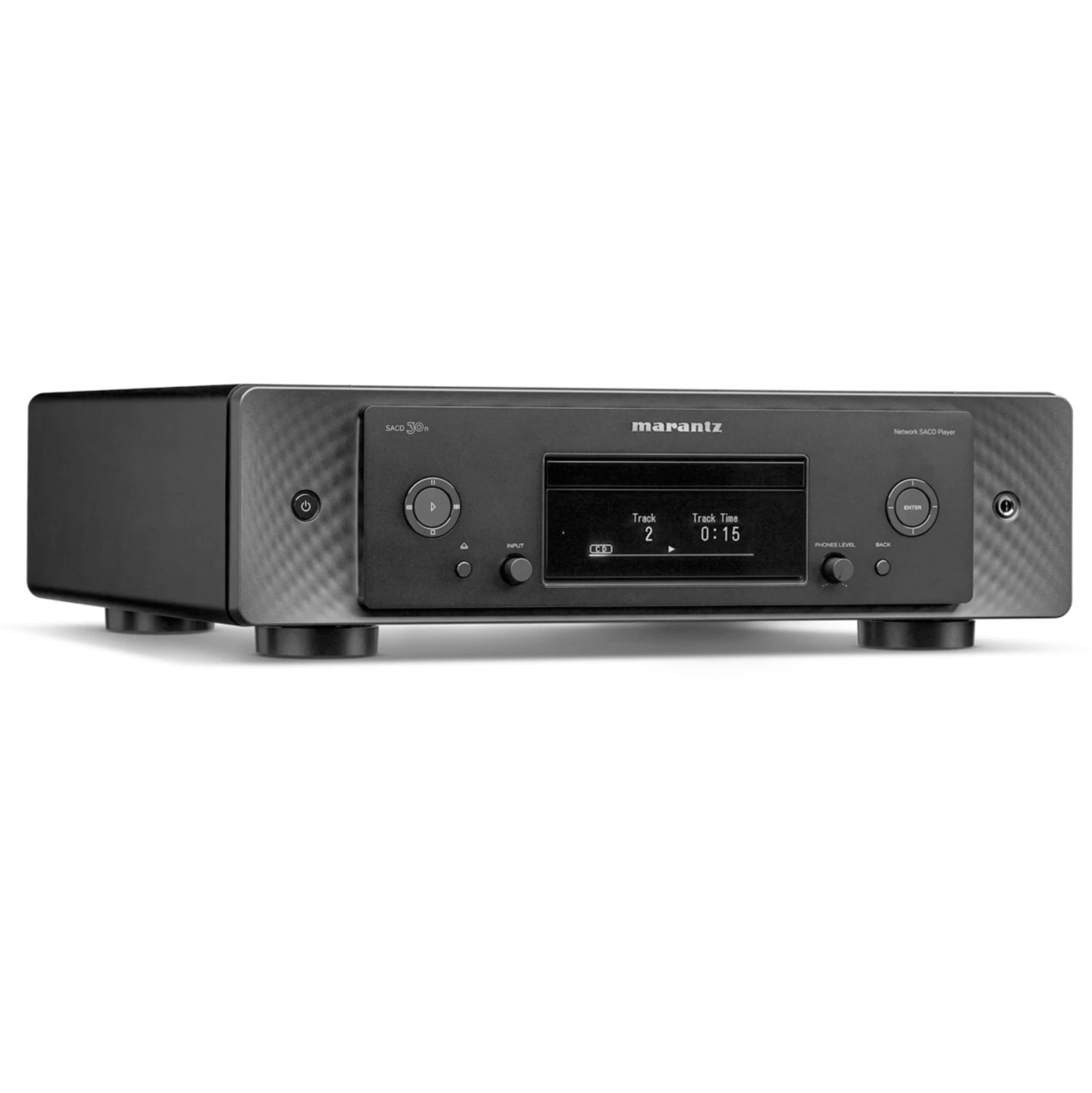

SACD 30n

The most musical digital source player for CDs, SACDs, and high-resolution files, plus multiple streaming services. Delivered through Marantz Musical Mastering processing and a crystal-clear pre-amplifier.

FEATURES

• Best Marantz audio quality from any digital source.
• Tuned with passion by the Marantz Sound Master.
• Marantz CD/SACD transport mechanism reduces interference.
• Marantz HDAM circuitry for clean, optimal dynamics.
• DAC Mode, SACD/CD player, streamer and very low-noise pre-amplifier.
• Marantz Musical Mastering for pure analog audio from any digital source.
• Fixed level and independent variable output.

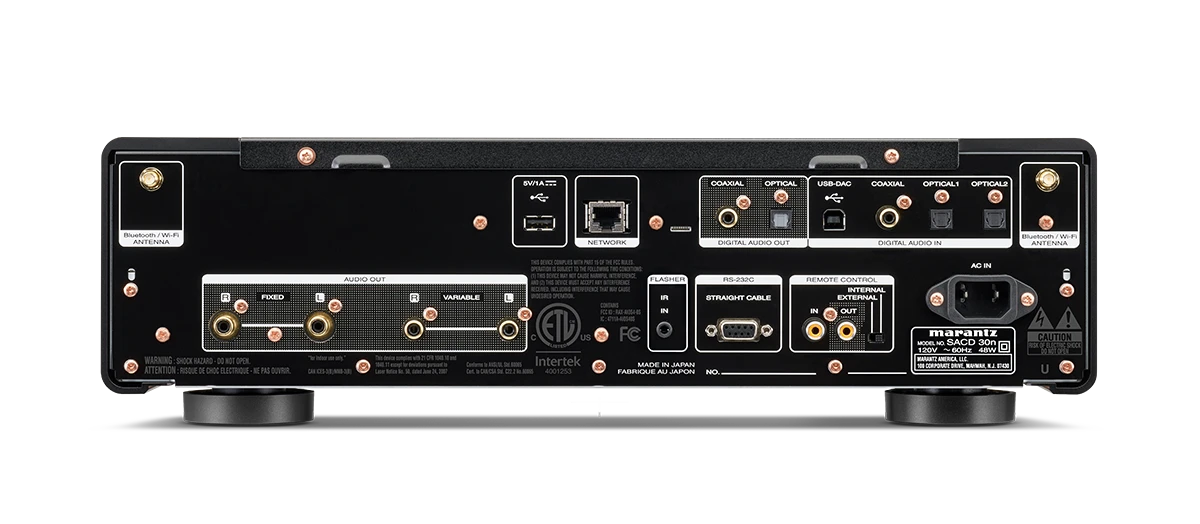

• Multiple inputs and outputs for component flexibility.
• HEOS® Built-in for whole-home integration and streaming options.
• Controllable by the leading voice control services.

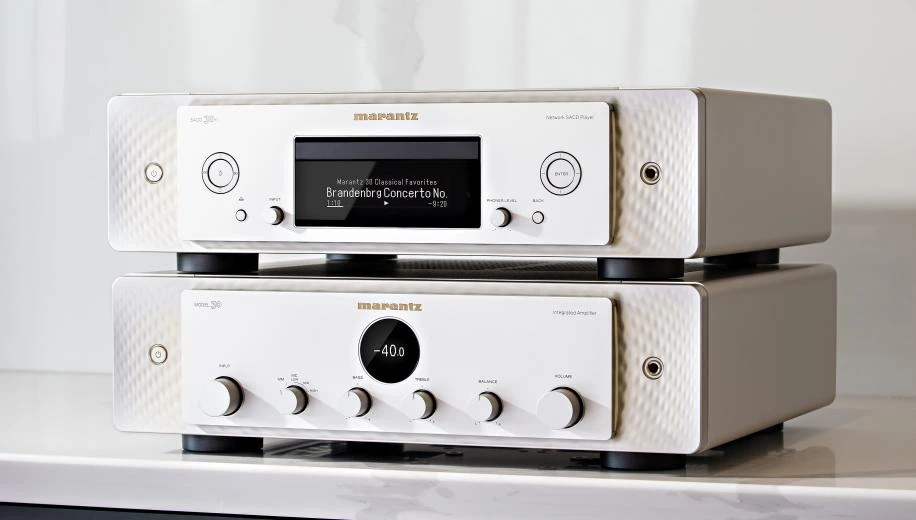

• Designed to complement the MODEL 30 integrated amplifier.

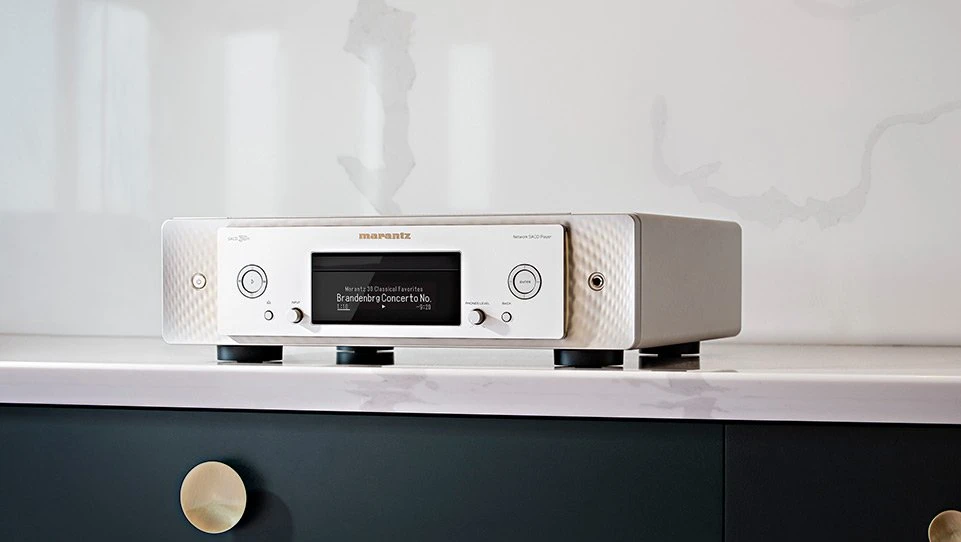

• Available in Black and Silver Gold

TECHNICAL SPECS

SPEC SHEET

• Computer music file streaming WMA / MP3 / AAC
• WAV192/24 / FLAC 192/24
• ALAC 192/24
• DSD 2.8/5.6
• Gapless Playback Music ServerUSB A: (FLAC, WAV, AIFF, ALAC, DSD)
• Internet radio: TuneIn
• AirPlay 2: yes (2)
• Cloud Music Service:
• Spotify Connect,
• Amazon Prime,
• Deezer Premium+,
• iHeart Radio,
• Napster, Pandora, SiriusXM,
• Sound Cloud, Tidal,
• Mood Mix
